Appendix D:

Separated Bikeway 35% Design

Concept and Cost Estimate for

Northern Segment of Richmond

Parkway

| 129

Appendix D: Separated Bikeway 35% Design Concept and Cost

Estimate for Northern Segment of Richmond Parkway

Page intentionally left blank.

Richmond Parkway 35% Plans

Key Improvement Types

The following treatments are detailed in the 35% plan set and

will be critical for project success on the corridor.

Separated bike lanes will be elevated to the

sidewalk level to physically separate bicyclists from

motor vehicle traffic, enhance bicyclist comfort

and safety, and provide new landscaping and/

or bioretention opportunities in the buffer.

Raised driveways at private intersections will

provide a continuous, flat surface for pedestrians and

cyclists. Where driveways are within the public right-

of-way or where future driveways are developed,

signs and design features will alert drivers that

they are crossing a pedestrian/bike facility.

Bioretention facilities may be installed in the

roadway buffers or landscaping. The next design

phase will determine appropriate treatments.

Protected intersections are designed to keep

bicyclists fully separate from vehicles until the

intersection, enhancing visibility and safety by reducing

right-turning vehicle speeds and giving bicyclists a head

start in crossing the street. These will be combined

with protected right-turn signal phasing for vehicles

to enhance safety for cyclists and pedestrians by

separating them in time from conflicting vehicle traffic.

Bus boarding islands separate waiting riders from

the separated bike lane, which is routed behind

the island to reduce bike/pedestrian conflicts.

Carrall Street, Vancouver, Canada

Walnut Avenue, Fremont

El Portal Drive, San Pablo

Webster Street,

Alameda

Walnut Avenue,

Fremont

Telegraph Avenue, Oakland

| 131

Appendix D: Separated Bikeway 35% Design

Concept and Cost Estimate for Northern Segment of Richmond Parkway

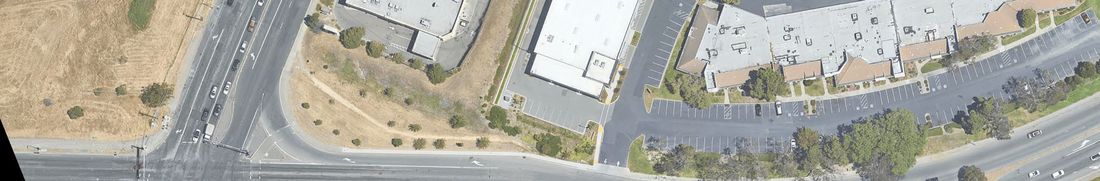

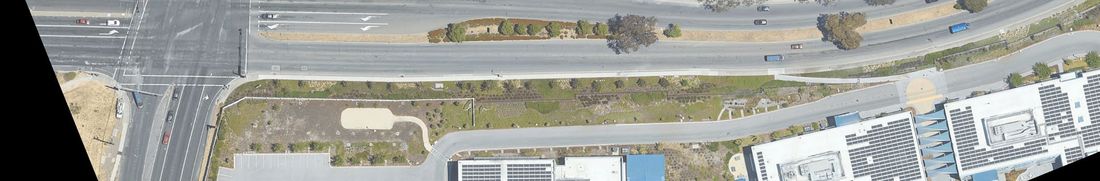

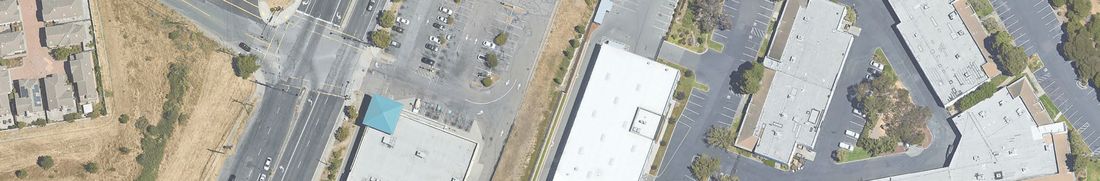

Figure, from page 4 of the original document. A written description is available on request.
Figure from page 4 of the original. Ask for a written description if you need one.
Figure, from page 4 of the original document. A written description is available on request.
Figure from page 4 of the original. Ask for a written description if you need one.
Figure, from page 4 of the original document. A written description is available on request.
Figure from page 4 of the original. Ask for a written description if you need one.
Figure, from page 4 of the original document. A written description is available on request.
Figure from page 4 of the original. Ask for a written description if you need one.

Original PDF, page 4

CONCEPTUAL - NOT FOR CONSTRUCTION. ADDITIONAL

DETAILED ANALYSIS AND ENGINEERING DESIGN REQUIRED.

Richmond Parkway

San Pablo Avenue to Fitzgerald Drive

Bikeway Concept Plan

Sheet 1 of

1:40 | 133

Appendix D: Separated Bikeway 35% Design

Concept and Cost Estimate for Northern Segment of Richmond Parkway

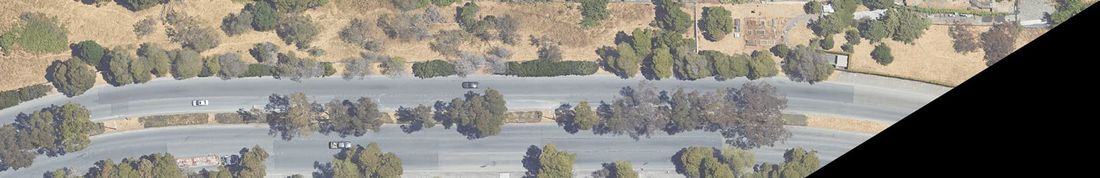

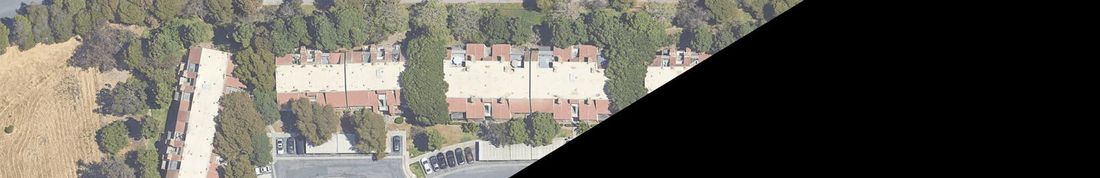

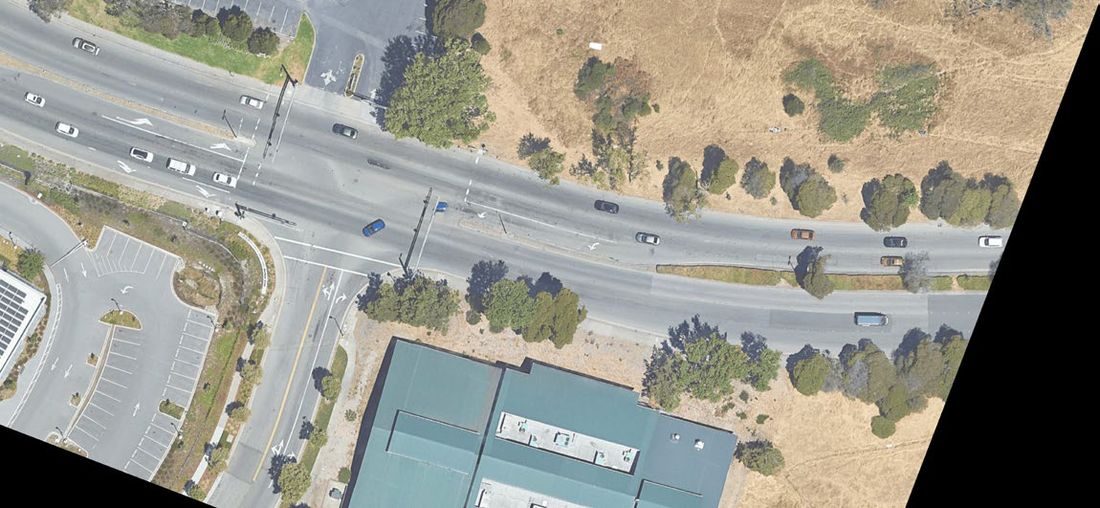

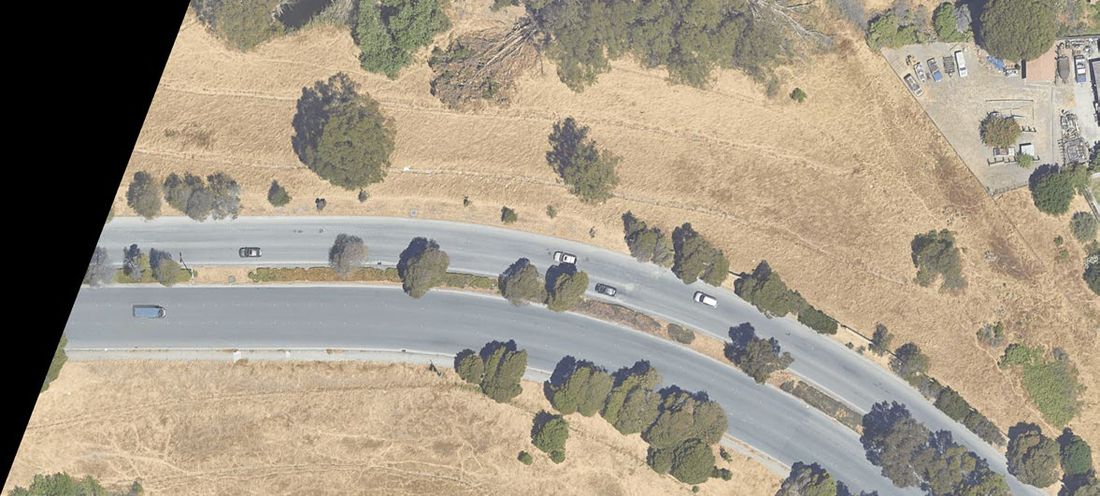

Figure, from page 6 of the original document. A written description is available on request.
Figure from page 6 of the original. Ask for a written description if you need one.
Figure, from page 6 of the original document. A written description is available on request.
Figure from page 6 of the original. Ask for a written description if you need one.
Figure, from page 6 of the original document. A written description is available on request.
Figure from page 6 of the original. Ask for a written description if you need one.
Figure, from page 6 of the original document. A written description is available on request.
Figure from page 6 of the original. Ask for a written description if you need one.
Figure, from page 6 of the original document. A written description is available on request.
Figure from page 6 of the original. Ask for a written description if you need one.

Original PDF, page 6

CONCEPTUAL - NOT FOR CONSTRUCTION. ADDITIONAL

DETAILED ANALYSIS AND ENGINEERING DESIGN REQUIRED.

Figure, from page 7 of the original document. A written description is available on request.
Figure from page 7 of the original. Ask for a written description if you need one.

1:40 1:40

Richmond Parkway

San Pablo Avenue to Fitzgerald Drive

Bikeway Concept Plan

Sheet 2 of

| 135

Appendix D: Separated Bikeway 35% Design

Concept and Cost Estimate for Northern Segment of Richmond Parkway

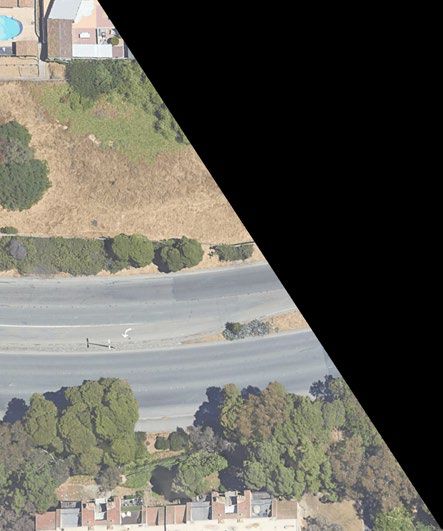

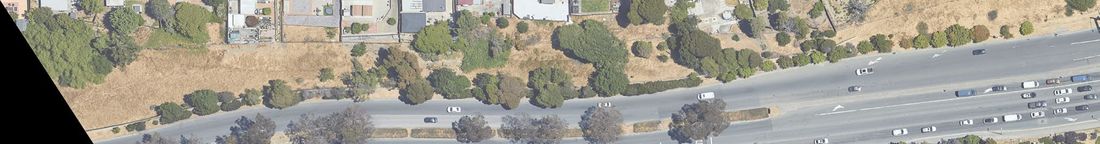

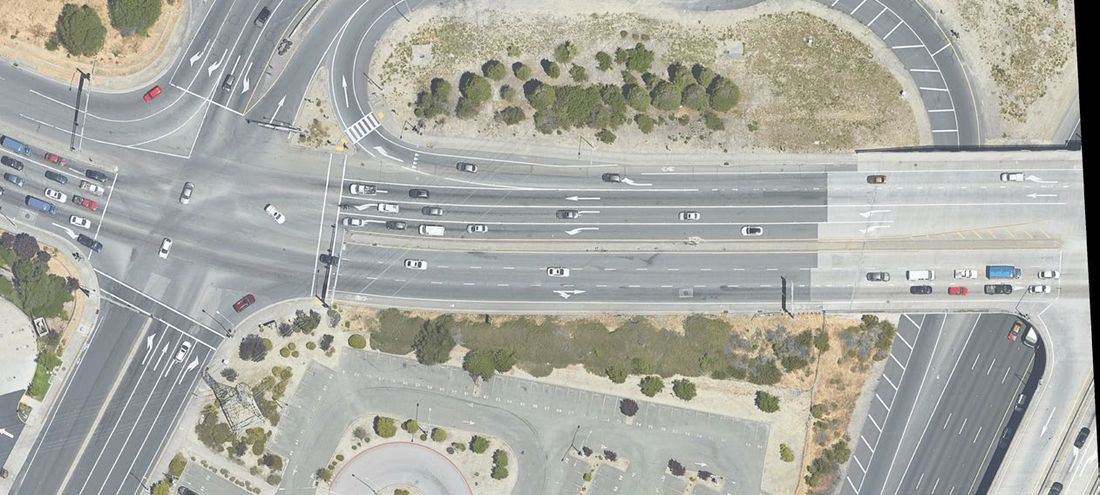

Figure, from page 8 of the original document. A written description is available on request.
Figure from page 8 of the original. Ask for a written description if you need one.
Figure, from page 8 of the original document. A written description is available on request.
Figure from page 8 of the original. Ask for a written description if you need one.
Figure, from page 8 of the original document. A written description is available on request.
Figure from page 8 of the original. Ask for a written description if you need one.
Figure, from page 8 of the original document. A written description is available on request.
Figure from page 8 of the original. Ask for a written description if you need one.

Original PDF, page 8

CONCEPTUAL - NOT FOR CONSTRUCTION. ADDITIONAL

DETAILED ANALYSIS AND ENGINEERING DESIGN REQUIRED.

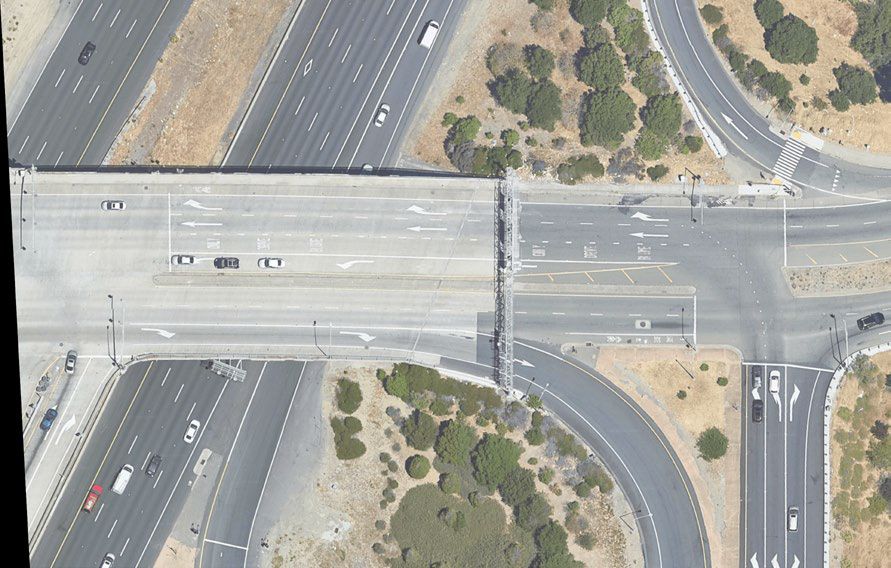

Figure, from page 9 of the original document. A written description is available on request.
Figure from page 9 of the original. Ask for a written description if you need one.

1:40 1:40

Richmond Parkway

San Pablo Avenue to Fitzgerald Drive

Bikeway Concept Plan

Sheet 3 of

| 137

Appendix D: Separated Bikeway 35% Design

Concept and Cost Estimate for Northern Segment of Richmond Parkway

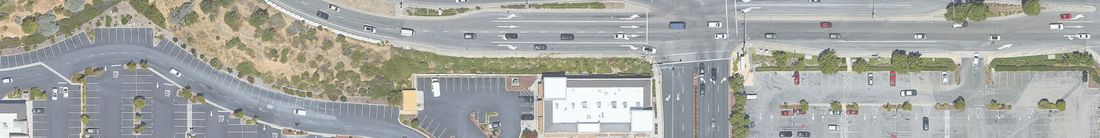

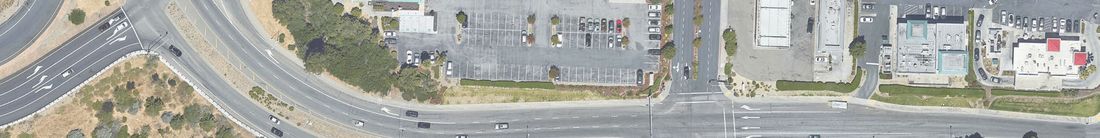

Figure, from page 10 of the original document. A written description is available on request.
Figure from page 10 of the original. Ask for a written description if you need one.
Figure, from page 10 of the original document. A written description is available on request.
Figure from page 10 of the original. Ask for a written description if you need one.
Figure, from page 10 of the original document. A written description is available on request.
Figure from page 10 of the original. Ask for a written description if you need one.
Figure, from page 10 of the original document. A written description is available on request.
Figure from page 10 of the original. Ask for a written description if you need one.
Figure, from page 10 of the original document. A written description is available on request.
Figure from page 10 of the original. Ask for a written description if you need one.
Figure, from page 10 of the original document. A written description is available on request.
Figure from page 10 of the original. Ask for a written description if you need one.

Original PDF, page 10

CONCEPTUAL - NOT FOR CONSTRUCTION. ADDITIONAL

DETAILED ANALYSIS AND ENGINEERING DESIGN REQUIRED.

1:40

Richmond Parkway

San Pablo Avenue to Fitzgerald Drive

Bikeway Concept Plan

Sheet 4 of

| 139

Appendix D: Separated Bikeway 35% Design

Concept and Cost Estimate for Northern Segment of Richmond Parkway

Original PDF, page 12

ITEMITEM DESCRIPTIONUNITQUANTITYUNIT PRICEITEM TOTALNOTES
1Mobilization (10%)LS1$3,089,000$ 3,089,00010% of construction items. Includes mobilization and demobilization.
2Environmental Protection (5%)LS1$1,544,000$ 1,544,0005% of construction items. Includes Storm Water Pollution Prevention Plan (SWPPP) and implementation.
3Traffic Control (5%)LS1$1,544,000$ 1,544,0005% of construction items.
4Storm Drain Inlet RelocationEA8$10,000$ 80,000Includes work to relocate storm drain curb inlets needed when curb and gutter is relocated.
5Storm Drain Pipe (15" RCP)LF120$530$ 63,600Includes storm drain pipe to connect to relocated storm drain curb inlets needed when curb and gutter is relocated.
6Misc. Utility ProtectionLS1$100,000$ 100,000Includes adjusting utility covers to grade. Does not include utility relocation or utility improvements.
7Remove Surfacing and BaseCY55,000$60$ 3,300,000Includes removal and offhaul of material equal in volume to the AB and HMA placed for roadways (31") and of the existing roadway section for areas beneath proposed bike paths, concrete, and landscape areas. Includes removal of subgrade if needed.
8Hot Mix AsphaltTON27,200$160$ 4,352,000Includes HMA for roadways and bike paths. Assumes a typical roadway paving section of 8" HMA (over 23" AB). Assumes a typical bike lane paving section of 3" HMA (over 12" AB).
9Class 2 Aggregate BaseTON74,300$95$ 7,058,500Includes AB for roadways and bike paths. Does not include AB for minor concrete. Assumes a typical roadway paving section of 8" HMA over 23" AB. Assumes a typical bike lane paving section of 3" HMA over 12" AB.
10Minor Concrete (Sidewalk, Driveway, Median, Curb & Gutter)SF90,200$20$ 1,804,000Includes all work and materials for constructing sidewalk, driveway, medians, curb & gutter, curb ramp areas. Area roughly equal to grey solid hatch "install new concrete sidewalk."
11Curb Ramps & Median Refuge IslandsEA46$8,000$ 368,000Includes the additional work to construct curb ramps and passageway islands beyond that required for standard sidewalk. Curb ramp and median refuge concrete area is already included as minor concrete.
12Bus Stops (Signage, Railing, Shelter)EA10$40,000$ 400,000Does not include concrete bus pads. Does not include more robust pavement or curb and gutter structure.
13Full Replacement of Existing Traffic SignalEA5$500,000$ 2,500,000Full replacement at San Pablo, Lakeside, Bella Vista, I-80 EB ramp, I-80 WB ramp intersections with Richmond Parkway
14Modification to Existing Traffic SignalEA2$250,000$ 500,000Modifications at I-80 HOV off-ramp and Pinole Vista Crossing intersections with Richmond Parkway/Fitzgerald
15I-80 On/Off-Ramp GradingCY1,200$200$ 240,000Intended to capture grading required for I-80 ramp intersection realignment. Assumes 12" average depth of soil moved and no net cut or fill. Traffic control, landscaping, Caltrans coordination, etc. are not included here.
16LandscapingSF79,850$25$ 1,996,250Includes trees (25 per 100 LF of roadway or every 8 feet if planted on both sides). Includes hand watering during establishment period (1 year).
17BioretentionSF25,080$180$ 4,514,400Assumes 4% of impervious area will be treated with bioretention for C.3 compliance. Assumes 4' wide linear reinforced concrete bioretention similar to El Portal Drive in San Pablo. Includes concrete structures, bioretention soils, plantings.
18Retaining Walls at Transit CenterLF180$600$ 108,000Assumes low height (under 4 ft) walls with negligible live loads.
19Bike Barricade at I-80 BridgeLF865$300$ 259,500Assumes K-Rail barricades doweled into bridge deck as needed. Continuous or decorative barricades will be a higher unit price. Does not include structural engineering or analysis or Caltrans coordination.
20Pedestrian HandrailLF200$100$ 20,000Includes pedestrian railing between back of walk and the bike path at the eastbound bus stop on the west side of the I-80 bridge.
21Thermoplastic Traffic StripingLF46,630$2$ 93,260Approximate quantity for all striping. Includes striping and markers for all details.
22Thermoplastic High Visibility CrosswalksLF1,712$40$ 68,480Approximate quantity for all crosswalks.
23Thermoplastic Traffic MarkingsEA210$250$ 52,500Approximate quantity for various traffic markings or clusters of markings on the roadway and bike paths.
24Green Bike Lane MarkingsSF1,820$12$ 21,840Assumes thermoplastic or Methyl Methacrylate (MMA).
25Roadway LightingMI1.4$2,133,000$ 2,986,200Lighting on both sides of street.
Construction Total$ 37,064,000
Contingency (20%)$ 7,412,800
Construction with Contingency$ 44,476,800
Construction with Contingency (Inflation-adjusted; Projected 2030 Construction)$ 54,113,000
Engineering and Construction Management
Engineering Design (15%)LS1$8,116,950$ 8,117,00015% of construction costs in 2030 dollars.
Construction Management (10%)LS1$5,411,300$ 5,412,00010% of construction costs in 2030 dollars.
Additional Structural Engineering Consulting for Bridge ConstructionLS1$100,000$ 100,000Includes structural review for bikeway on bridge deck, including coordination review with Caltrans and development of a barricade doweling detail. Assumes no bridge structural improvements.
Additional Engineering and Design for Caltrans Encroachment Permit and CoordinationLS1$200,000$ 200,000The concept requires extensive work in Caltrans R/W which will require additional work to coordinate with Caltrans.
Engineering and Construction Management Subtotal$ 13,829,000
Grand Total (Construction, Engineering, and Construction Management; 2030 Construction)$ 67,940,000

City of Richmond

Engineer's Estimate of Probable Construction Cost

35% Design Concept for Northern Segment of Richmond Parkway

February 18, 2025
